Iscar

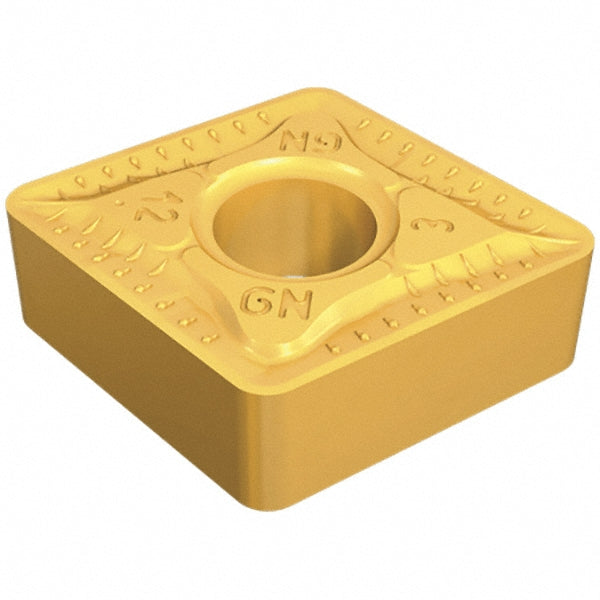

CNMG 431-GN Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308132
MFR# 3308132ISO/ANSI# CNMG 431-GNSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308132 is a CNMG 431-GN solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 431-GN
Length range0.5000 - 0.6000
Manufacturers catalog number3308132
Manufacturer gradeIC830
Maximum depth of cut0.1570
Primary workpiece materialM; P; S
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
