WNMG 433-GN Carbide Insert, Grade IC830, TiAlN - Iscar 3308135

MFR# 3308135ISO/ANSI# WNMG080412Series Isoturn

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

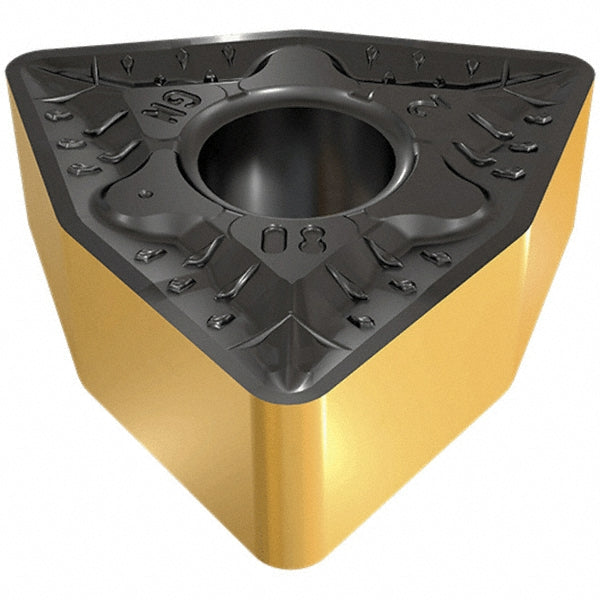

The Iscar 3308135 is a WNMG 433-GN carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeWNMG433
Ansi size code433
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 433-GN
Iso insert codeWNMG080412
Iso size code080412
Length range0.3000 - 0.4000
Manufacturers catalog number3308135
Manufacturer gradeIC830
Maximum depth of cut0.1770
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
