Iscar

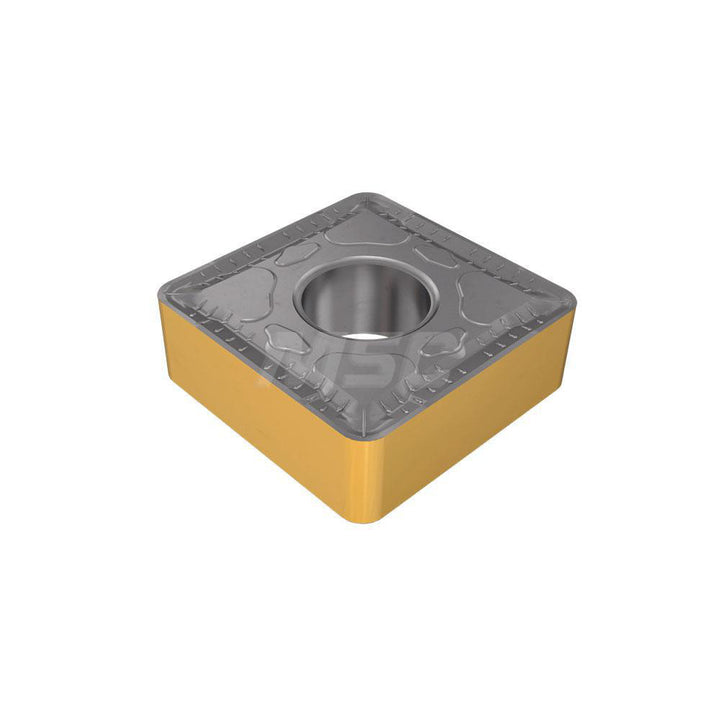

SNMG 543-GN Carbide Insert, Grade IC830, TiAlN - Iscar 3308155
MFR# 3308155ISO/ANSI# SNMG150612Series Isoturn
$20.89List $26.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3308155 is a SNMG 543-GN carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Ansi insert codeSNMG543
Ansi size code543
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle90
Inscribed circle in5/8
Insert handRight Hand
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 543-GN
Iso insert codeSNMG150612
Iso size code150612
Manufacturers catalog number3308155
Manufacturer gradeIC830
Maximum depth of cut0.2760
Multi use applicationTurning
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Width in5/8
