Iscar

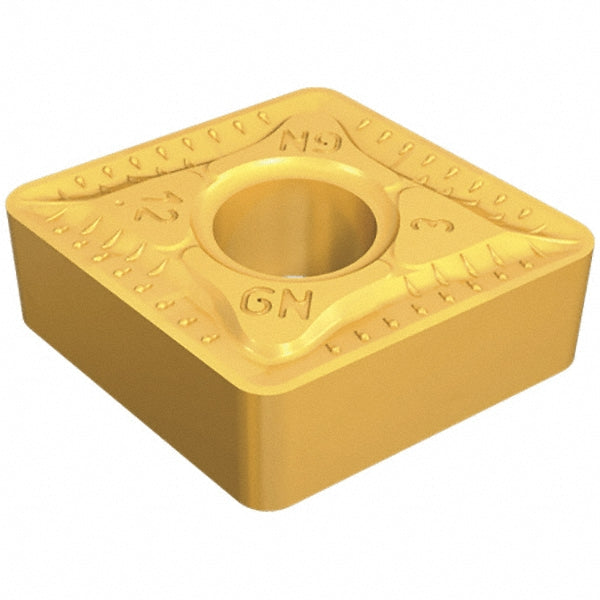

CNMG 543-GN Carbide Insert, Grade IC830, TiAlN - Iscar 3308163
MFR# 3308163ISO/ANSI# CNMG160612Series Isoturn
$28.39List $36.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3308163 is a CNMG 543-GN carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle80
Inscribed circle in5/8
Insert handRight Hand
Insert length0.6350
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 543-GN
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog number3308163
Manufacturer gradeIC830
Maximum depth of cut0.2760
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
