Iscar

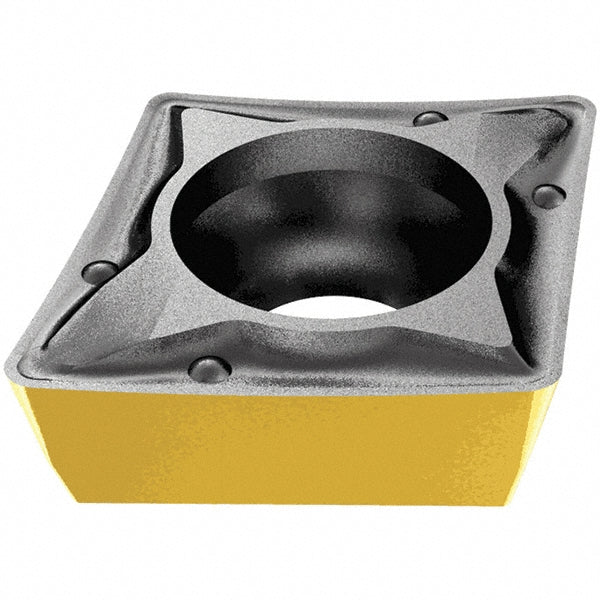

CPMT 2-1-PF Carbide Insert, Grade IC830, TiAlN - Iscar 3308164
MFR# 3308164ISO/ANSI# CPMT 2-1-PFSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3308164 is a CPMT 2-1-PF carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handRight Hand
Insert length0.2480
Insert materialCarbide
Insert shapeDiamond
Insert size code2-1
Insert styleCPMT
Insert thickness0.0940
Iso codeCPMT 2-1-PF
Length range0.0000 - 0.3000
Manufacturers catalog number3308164
Manufacturer gradeIC830
Maximum depth of cut0.0980
Multi use applicationTurning
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
