Iscar

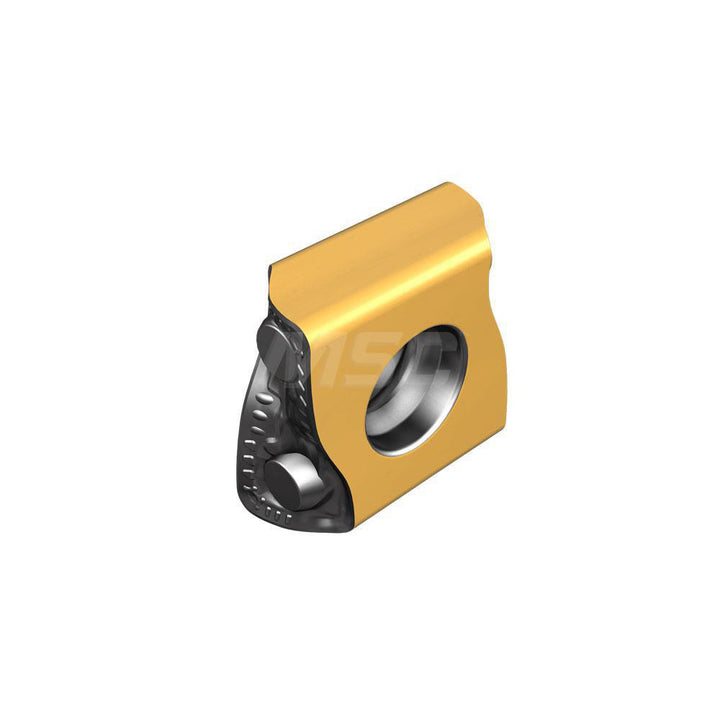

LNMX 150608R-HT Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308173
MFR# 3308173ISO/ANSI# LNMX 150608R-HTSeries Heliturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTangent
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308173 is a LNMX 150608R-HT solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeTangent
Insert size code150608
Insert styleLNMX
Insert thickness0.5280
Iso codeLNMX 150608R-HT
Manufacturers catalog number3308173
Manufacturer gradeIC830
Maximum depth of cut0.2360
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
Width0.2520
