Iscar

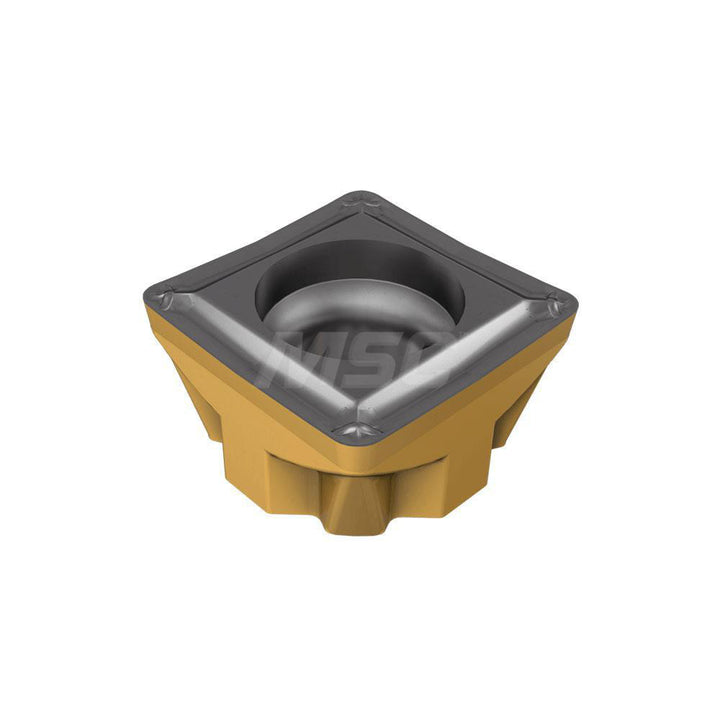

SC45MT 100508-SM Carbide Insert, Grade IC830, TiAlN - Iscar 3308175
MFR# 3308175ISO/ANSI# SC45MT100508Series ChamTurn
$16.53List $21.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeS - Square
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3308175 is a SC45MT 100508-SM carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Ansi insert codeSC45MT100508
Ansi size code100508
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Hole diameter0.1770
Included angle90
Insert handRight Hand
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code100508
Insert styleSC45MT
Insert thickness0.1970
Iso codeSC45MT 100508-SM
Iso insert codeSC45MT100508
Iso size code100508
Length range0.3000 - 0.4000
Manufacturers catalog number3308175
Manufacturer gradeIC830
Maximum depth of cut0.1180
Multi use applicationTurning
Side clearanceNegative
StandardsISO 13399
Width in3/8
