HM90 APKT 1003PDR Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309396

Iscar

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309396

MFR# 3309396ISO/ANSI# HM90 APKT 1003PDRCat# HM90 APKT 1003PDR IC882Series HELI2000

$31.85List $40.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

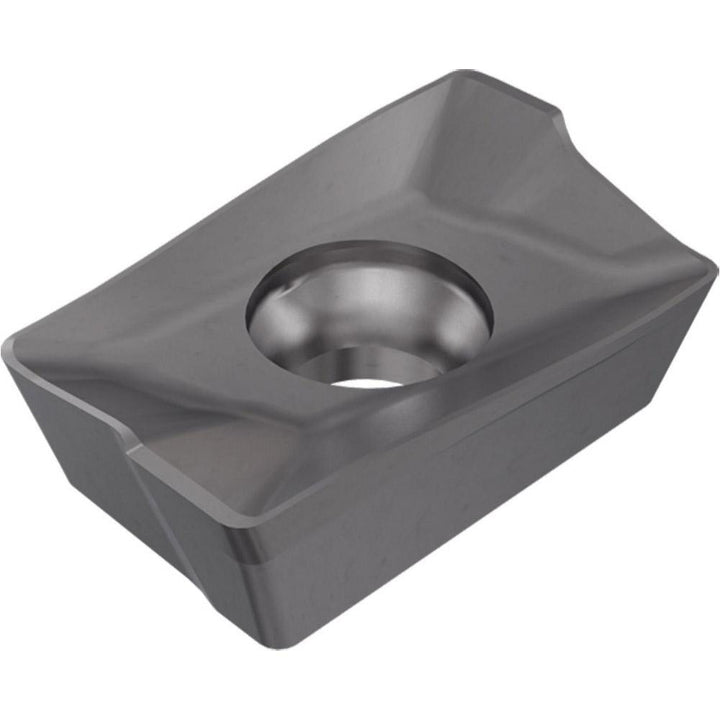

The Iscar 3309396 is a HM90 APKT 1003PDR solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeHM90 APKT 1003PDR IC882
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeHM90 APKT 1003PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 1003PDR IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
