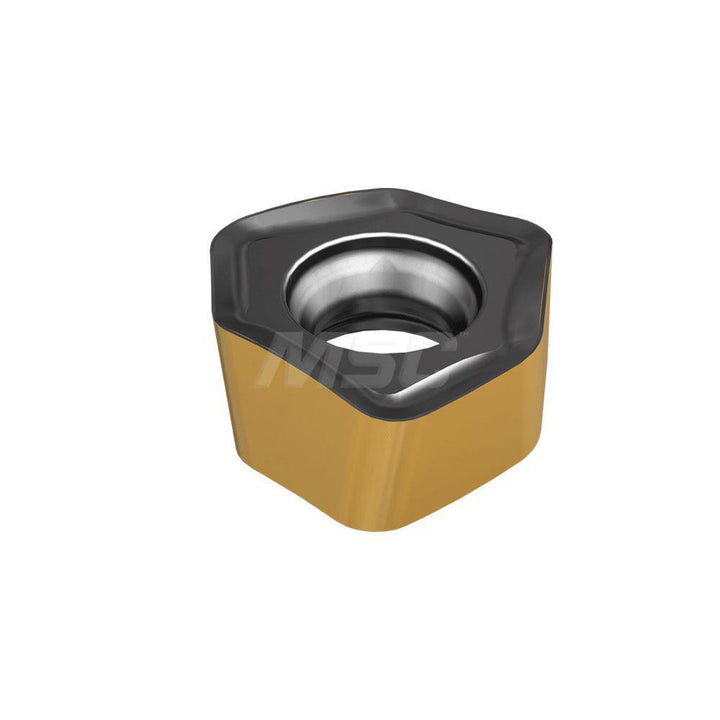

H600 WXCU 05T312HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309413

Iscar

H600 WXCU 05T312HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309413

MFR# 3309413ISO/ANSI# H600 WXCU 05T312HPCat# H600 WXCU 05T312HP IC882Series HELI6FEED

$52.86List $67.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeTrigon
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3309413 is a H600 WXCU 05T312HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 05T312HP IC882
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2165
Cutting edge styleSharp
Included angle degree80
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size05
Insert size code05T312
Insert styleWXCU
Iso codeH600 WXCU 05T312HP
Length in21/64
Length range0.3200 to 0.4000
Manufacturers catalog numberH600 WXCU 05T312HP IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width in21/64
