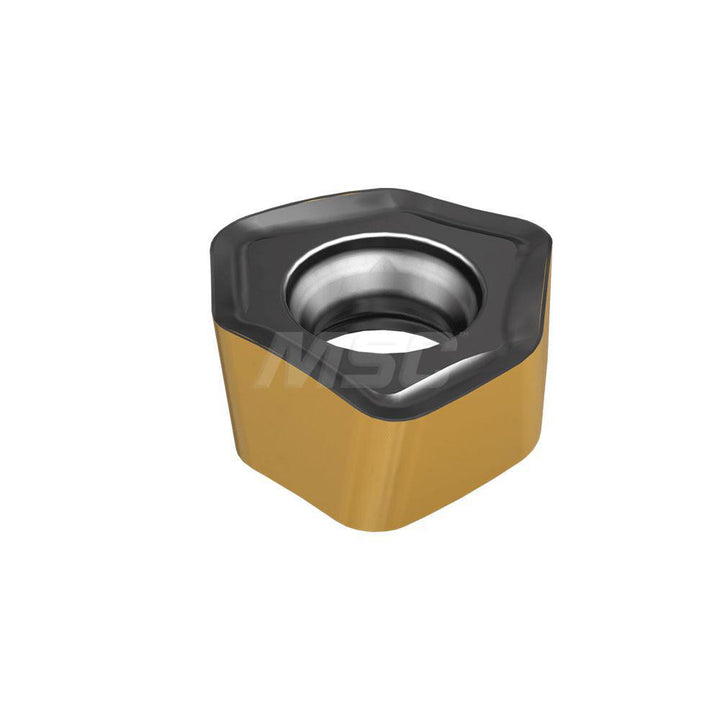

H600 WXCU 070515HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309414

MFR# 3309414ISO/ANSI# H600 WXCU 070515HPCat# H600 WXCU 070515HP IC882Series HELI6FEED

$55.44List $71.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3309414 is a H600 WXCU 070515HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 070515HP IC882
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2819
Cutting edge styleSharp
Included angle degree80
Inscribed circle0.4386
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size07
Insert size code070515
Insert styleWXCU
Iso codeH600 WXCU 070515HP
Length0.4386
Length range0.4000 to 0.4500
Manufacturers catalog numberH600 WXCU 070515HP IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.2819
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.4386
