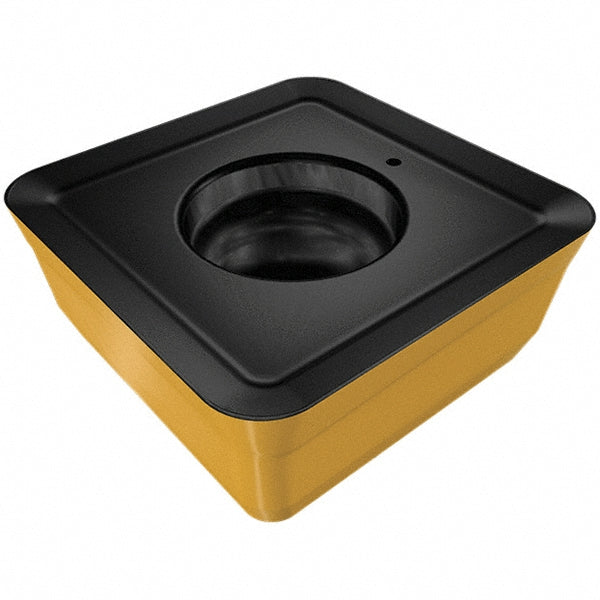

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309416

Iscar

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309416

MFR# 3309416ISO/ANSI# FFQ4 SOMT 120516HPCat# FFQ4 SOMT 120516HP IC882Series MILL4FEED

$39.74List $50.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3309416 is a FFQ4 SOMT 120516HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeFFQ4 SOMT 120516HP IC882
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFFQ4
Cutting edge effective length0.4370
Cutting edge styleContinuous
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleSOMT
Iso codeFFQ4 SOMT 120516HP
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberFFQ4 SOMT 120516HP IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width in1/2
