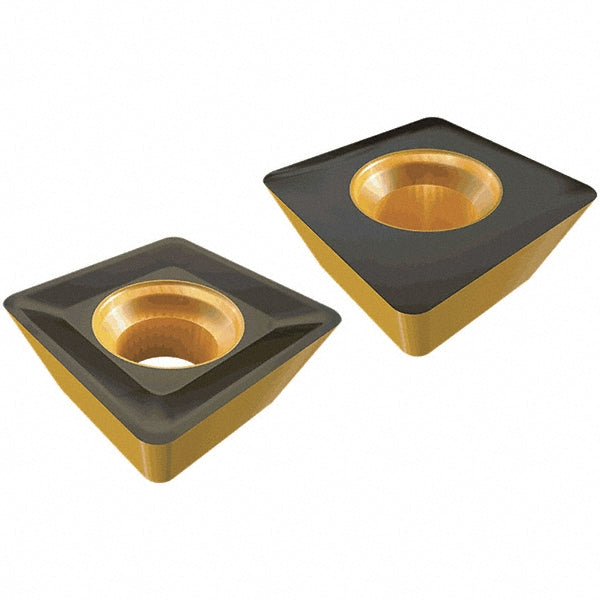

SDHX 120508-PD-N Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309425

Iscar

SDHX 120508-PD-N Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3309425

MFR# 3309425ISO/ANSI# SDHX 120508-PD-NCat# SDHX 120508-PD-N IC882Series XQUAD

$53.88List $69.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3309425 is a SDHX 120508-PD-N solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeSDHX 120508-PD-N IC882
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySDK
Cutting edge effective length0.4685
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleSDHX
Iso codeSDHX 120508-PD-N
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDHX 120508-PD-N IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1940
Thickness range0.1850 to 0.2000
Width in1/2
