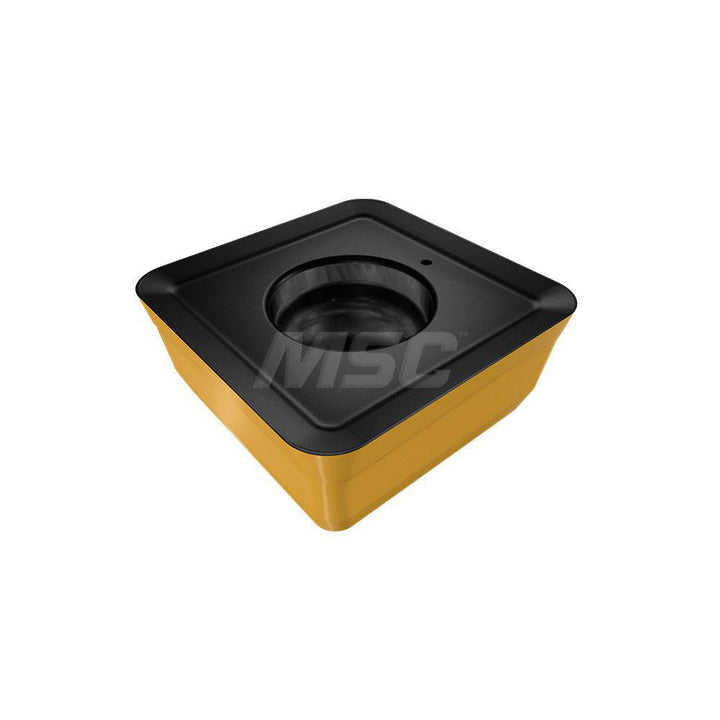

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC5820, Al2O3 - Iscar 3309561

Iscar

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC5820, Al2O3 - Iscar 3309561

MFR# 3309561ISO/ANSI# FFQ4 SOMT 120516HPCat# FFQ4 SOMT 120516HP IC5820Series MILL4FEED

$30.22List $38.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC5820
MaterialSolid Carbide
CoatingAl2O3

Description

The Iscar 3309561 is a FFQ4 SOMT 120516HP solid carbide indexable insert, grade IC5820, Al2O3 coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeFFQ4 SOMT 120516HP IC5820
Chip breakerHP
Coating finishAl2O3
Coating processMTCVD
Corner radius in1/16
Cutter series compatibilityFFQ4
Cutting edge effective length0.4370
Cutting edge styleContinuous
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleSOMT
Iso codeFFQ4 SOMT 120516HP
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberFFQ4 SOMT 120516HP IC5820
Manufacturer gradeIC5820
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width in1/2
