Iscar

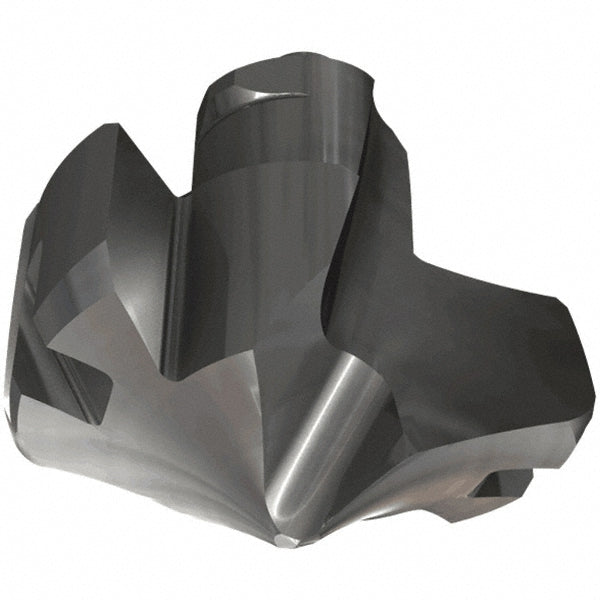

Carbide Insert, Grade IC908, TiAlN - Iscar 3311005
MFR# 3311005Series HCP-IQ
$190.52List $244.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 3311005 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0630
Drill point angle136
Flute typeSpiral
Functional length0.3720
Height0.6160
Included angle degree136
Insert geometryP
Insert holding methodTwist
Insert seat size27
Iso numberHCP 270-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.6160
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDeep Hole; Self-Centering
Tip materialSolid Carbide
Web thinningWeb Thinned
