Iscar

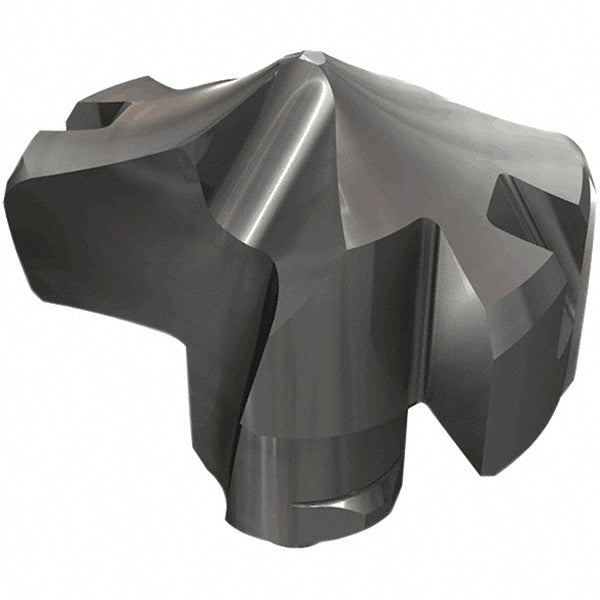

Carbide Insert, Grade IC908, TiAlN - Iscar 3311081
MFR# 3311081Series HCP-IQ
$207.23List $265.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 3311081 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.1220
Drill point angle137
Flute length (mm)10.00
Flute typeHelical
Functional length0.3861
Height0.639
Included angle degree137
Insert geometryP
Insert holding methodClamp
Insert seat size28
Iso numberHCP 285-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.6390
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
