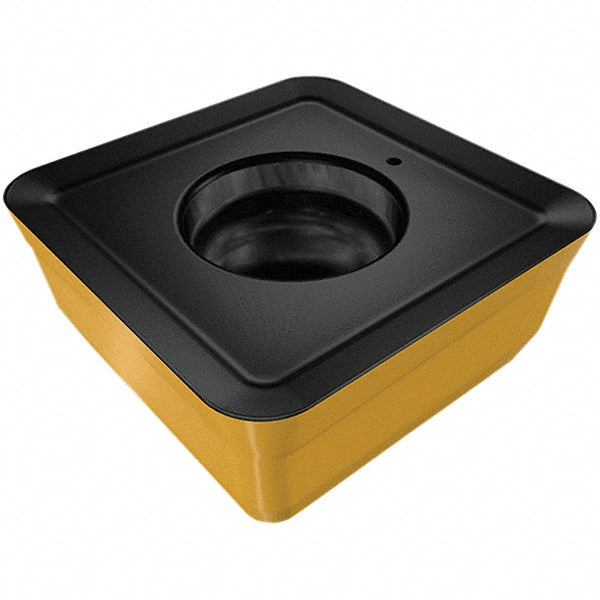

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3311928

Iscar

FFQ4 SOMT 120516HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3311928

MFR# 3311928ISO/ANSI# FFQ4 SOMT 120516HPCat# FFQ4 SOMT 120516HP IC808Series MILL4FEED

$25.79List $32.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 3311928 is a FFQ4 SOMT 120516HP solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeFFQ4 SOMT 120516HP IC808
Chip breakerHP
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityFFQ4
Cutting edge effective length0.4370
Cutting edge styleContinuous
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleSOMT
Iso codeFFQ4 SOMT 120516HP
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberFFQ4 SOMT 120516HP IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width in1/2
