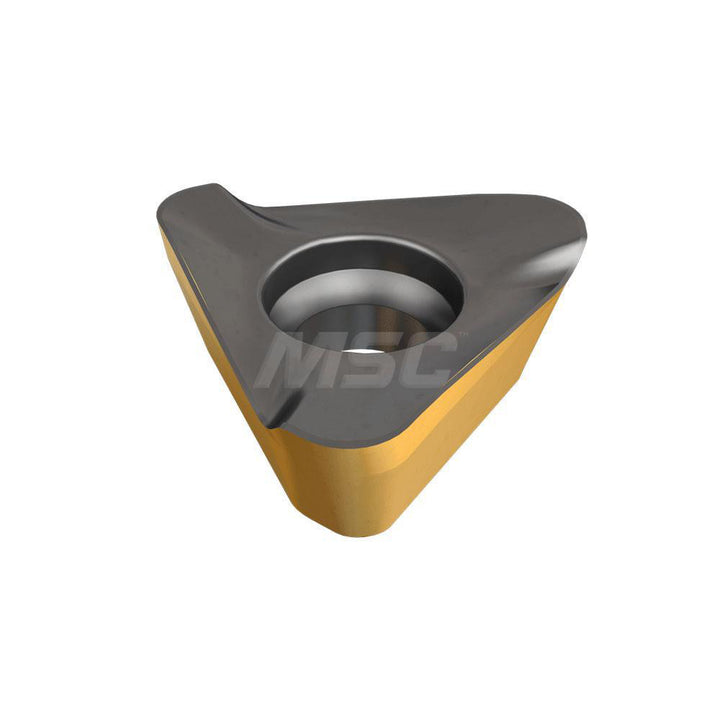

HM390 TDKT 150504PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3313112

Iscar

HM390 TDKT 150504PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3313112

MFR# 3313112ISO/ANSI# HM390 TDKT 150504PDRCat# HM390 TDKT 150504PDR IC830Series HELI3MILL

$23.42List $30.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3313112 is a HM390 TDKT 150504PDR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM390 TDKT 150504PDR IC830
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHM390-15
Cutting edge effective length0.5120
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.4488
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size15
Insert size code150504
Insert styleTDKT
Iso codeHM390 TDKT 150504PDR
Length0.6670
Length range0.6500 to 0.7000
Manufacturers catalog numberHM390 TDKT 150504PDR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2390
Thickness range0.2350 to 0.2500
Width0.6670
