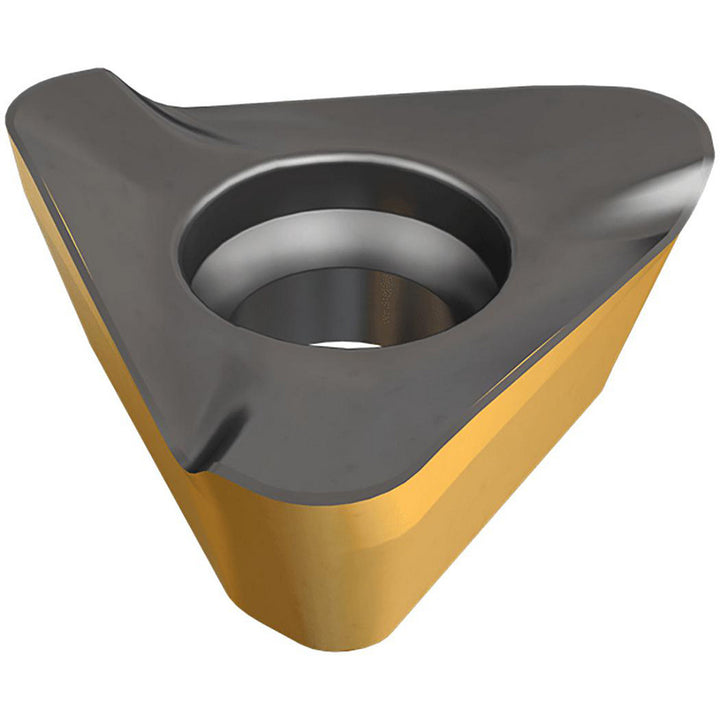

HM390 TDCR 150520PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 3313135

Iscar

HM390 TDCR 150520PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 3313135

MFR# 3313135ISO/ANSI# HM390 TDCR 150520PDFR-PCat# HM390 TDCR 150520PDFR-P IC28Series HELI3MILL

$26.16List $33.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC28
MaterialSolid Carbide

Description

The Iscar 3313135 is a HM390 TDCR 150520PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM390 TDCR 150520PDFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.0787
Cutter series compatibilityHM390-15
Cutting edge effective length0.5513
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.4488
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size15
Insert size code150520
Insert styleTDCR
Iso codeHM390 TDCR 150520PDFR-P
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberHM390 TDCR 150520PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.5118
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.6300
