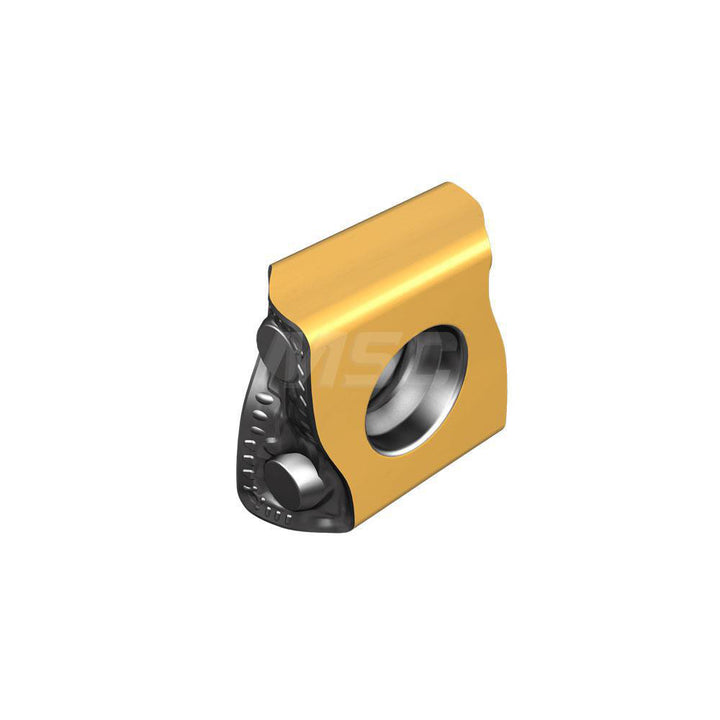

LNMX 150616L-HT Carbide Insert, Grade IC830, TiAlN - Iscar 3314630

Iscar

LNMX 150616L-HT Carbide Insert, Grade IC830, TiAlN - Iscar 3314630

MFR# 3314630ISO/ANSI# LNMX150616Series Isoturn

$20.59List $26.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeL - Rectangle
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 3314630 is a LNMX 150616L-HT carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeLNMX
Chip breakerHT
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Insert handLeft Hand
Insert length0.5910
Insert materialCarbide
Insert shapeL - Rectangle
Insert size code150
Insert styleLNMX
Insert thickness0.5280
Iso codeLNMX 150616L-HT
Iso insert codeLNMX150616
Iso size code150616
Manufacturers catalog number3314630
Manufacturer gradeIC830
Maximum depth of cut0.3150
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
