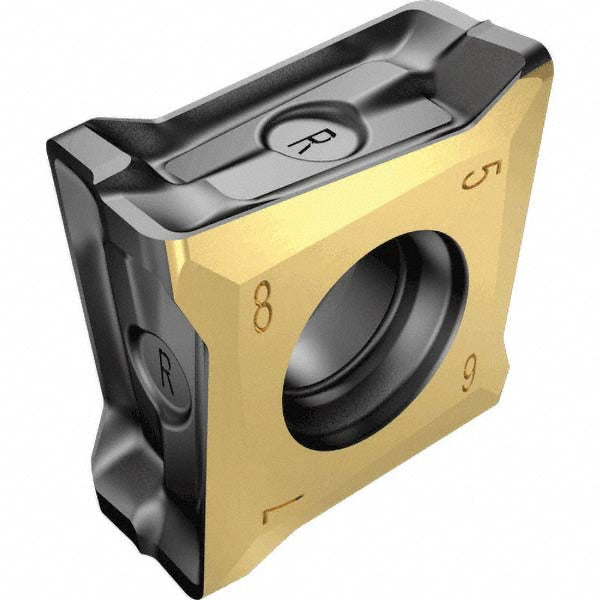

T890 LNHT 1306PNTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3314971

Iscar

T890 LNHT 1306PNTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3314971

MFR# 3314971ISO/ANSI# T890 LNHT 1306PNTRCat# T890 LNHT 1306PNTR IC810Series LOGIQ8TANG

$34.83List $44.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 3314971 is a T890 LNHT 1306PNTR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeT890 LNHT 1306PNTR IC810
Chip breakerPNTR
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT890
Cutting edge effective length0.5430
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNHT
Iso codeT890 LNHT 1306PNTR
Length0.5430
Length range0.5000 to 0.6000
Manufacturers catalog numberT890 LNHT 1306PNTR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3740
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5425
Thickness range0.5000+
Width0.2360
