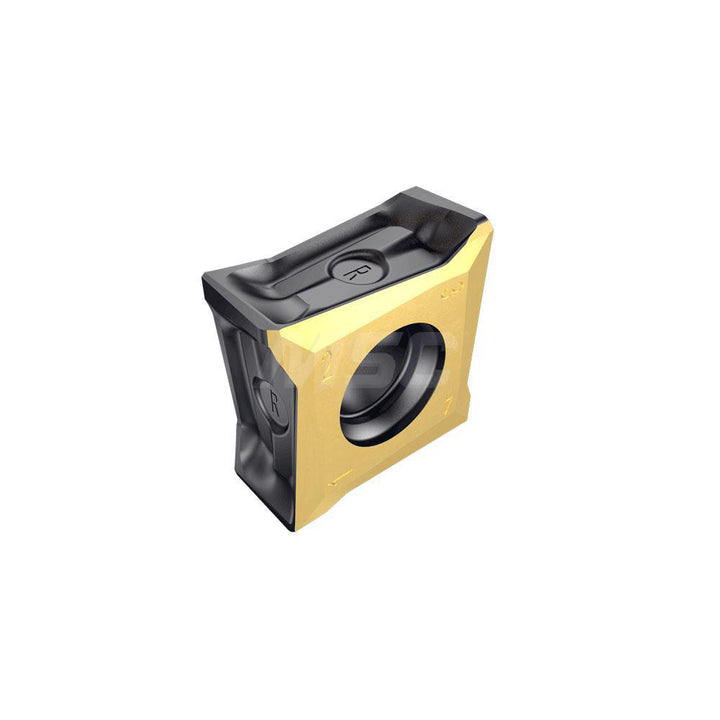

T890 LNAT 1306PN-W Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3315294

Iscar

T890 LNAT 1306PN-W Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3315294

MFR# 3315294ISO/ANSI# T890 LNAT 1306PN-WCat# T890 LNAT 1306PN-W IC810Series TANGMILL

$47.01List $60.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 3315294 is a T890 LNAT 1306PN-W solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeT890 LNAT 1306PN-W IC810
Chip breakerW
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityT890
Cutting edge effective length0.5480
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2320
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNAT
Iso codeT890 LNAT 1306PN-W
Length0.5480
Length range0.5000 to 0.6000
Manufacturers catalog numberT890 LNAT 1306PN-W IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3740
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5480
Thickness range0.5000+
Width0.2320
