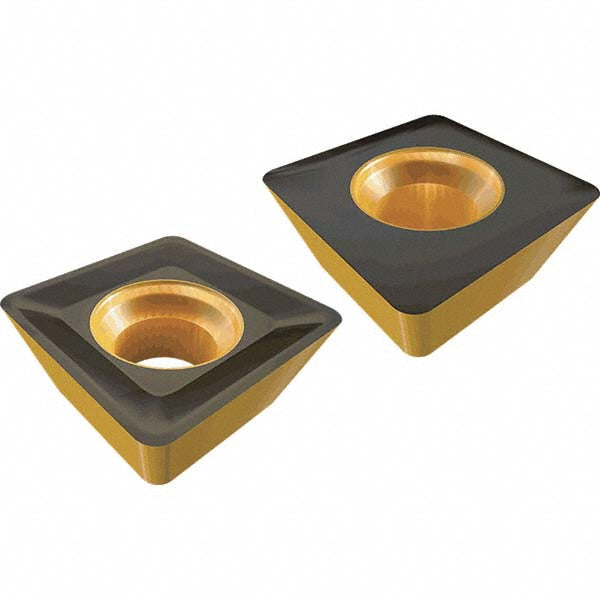

SDHT 120508-PDEN Solid Carbide Insert, Grade IC5820, Al2O3 - Iscar 3315344
MFR# 3315344ISO/ANSI# SDHT 120508-PDENCat# SDHT 120508-PDEN IC5820Series XQUAD
$58.88List $74.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC5820
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 3315344 is a SDHT 120508-PDEN solid carbide indexable insert, grade IC5820, Al2O3 coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeSDHT 120508-PDEN IC5820
Chip breakerPDEN
Coating finishAl2O3
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilitySDK
Cutting edge effective length0.4685
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleSDHT
Iso codeSDHT 120508-PDEN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDHT 120508-PDEN IC5820
Manufacturer gradeIC5820
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.3333
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1930
Thickness range0.1850 to 0.2000
Width in1/2
