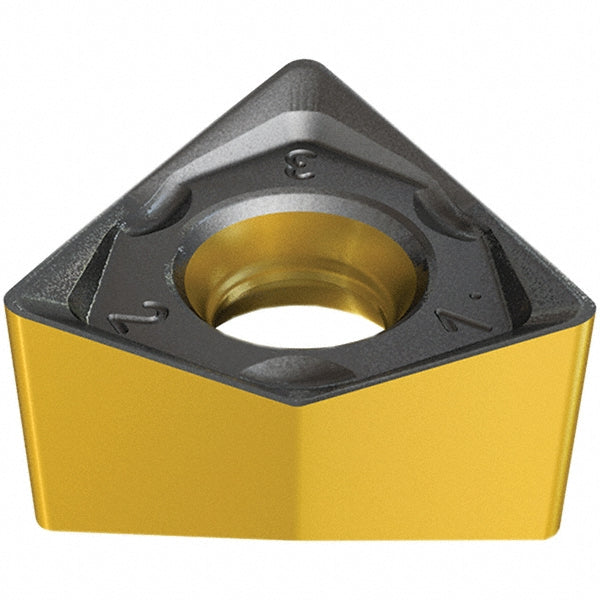

H690 WNMU 0705PNR-RM Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3317925

Iscar

H690 WNMU 0705PNR-RM Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 3317925

MFR# 3317925ISO/ANSI# H690 WNMU 0705PNR-RMCat# H690 WNMU 0705PNR-RM IC810Series HELIDO

$27.10List $34.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeTrigon
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 3317925 is a H690 WNMU 0705PNR-RM solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeH690 WNMU 0705PNR-RM IC810
Chip breakerRM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH690-07
Cutting edge effective length0.2760
Cutting edge styleChamfered; Honed
Included angle degree60
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size07
Insert size code0705
Insert styleWNMU
Iso codeH690 WNMU 0705PNR-RM
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog numberH690 WNMU 0705PNR-RM IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2280
Thickness range0.2200 to 0.2350
Width in29/64
