Iscar

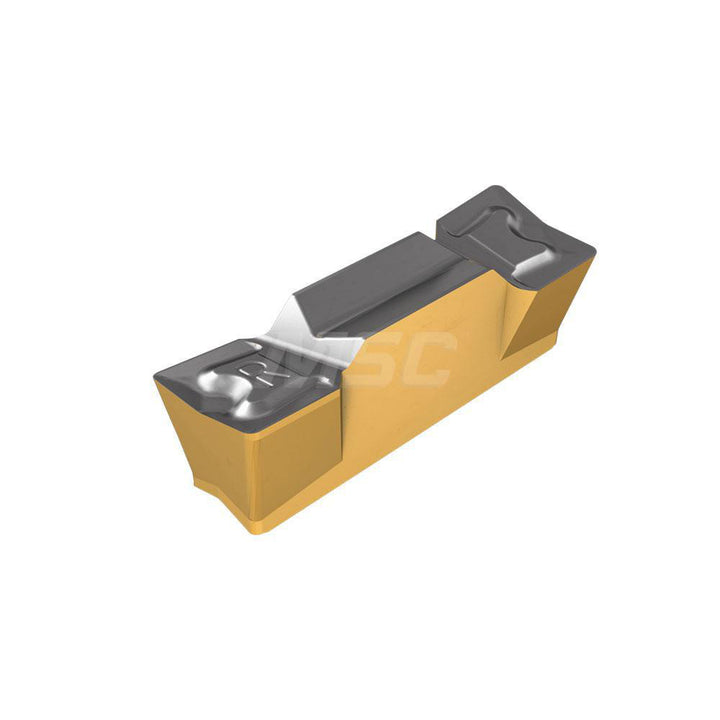

HFPR 3003 IC806 Carbide Insert, Grade IC806, AlTiN - Iscar 3318155
MFR# 3318155ISO/ANSI# HFPR 3003 IC806Series Heliface
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 3318155 is a HFPR 3003 IC806 carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloys, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0120
Cutting width0.118
Insert handRight Hand
Insert materialCarbide
Insert size3003
Insert size code3003
Insert styleHFPR
Iso codeHFPR 3003 IC806
Manufacturers catalog number3318155
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.748
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
