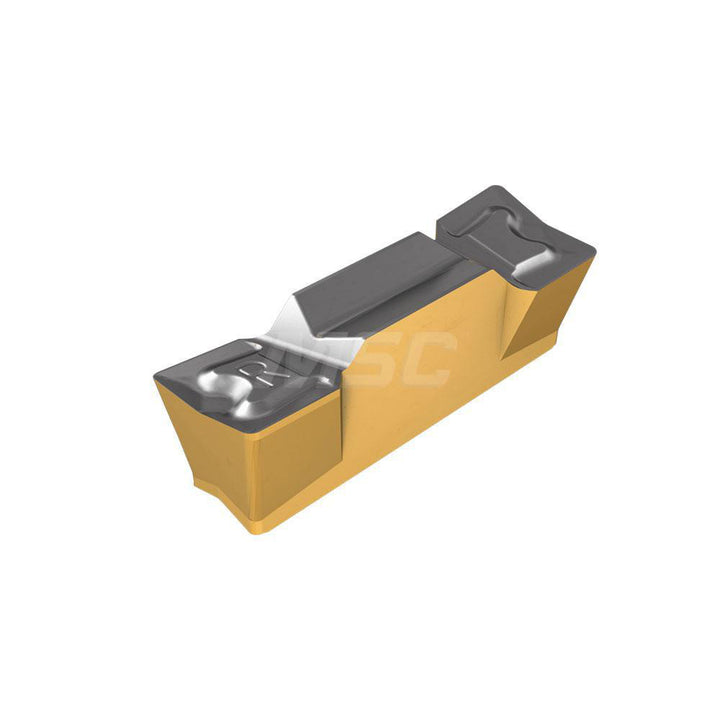

HFPR 4004 IC806 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 3318157
MFR# 3318157ISO/ANSI# HFPR 4004 IC806Series Heliface
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3318157 is a HFPR 4004 IC806 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting width0.1570
Insert handRight Hand
Insert materialSolid Carbide
Insert size4004
Insert size code4004
Insert styleHFPR
Iso codeHFPR 4004 IC806
Manufacturers catalog number3318157
Manufacturer gradeIC806
Material gradeSubmicron
Maximum corner radius0.0160
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
StandardsISO 13399
