Iscar

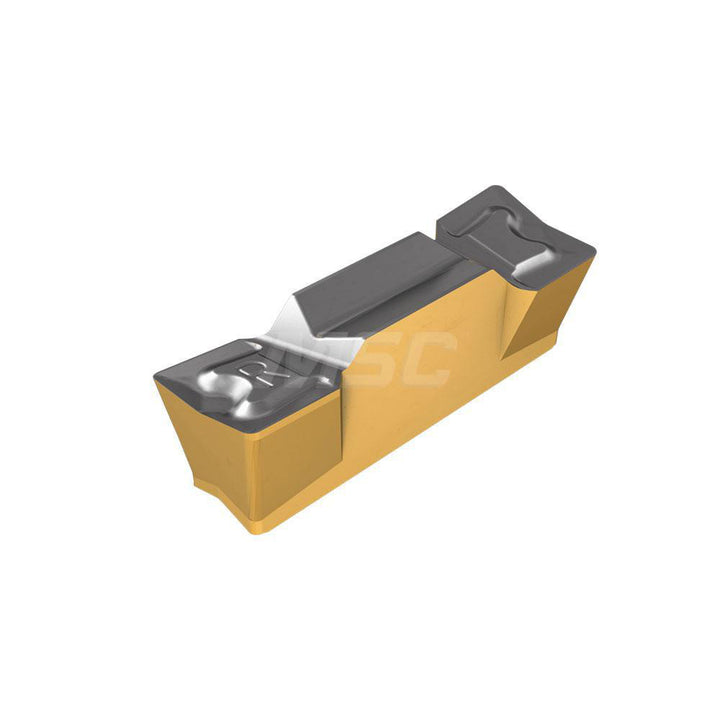

HFPR 6004 IC806 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 3318161
MFR# 3318161ISO/ANSI# HFPR 6004 IC806Series Heliface
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3318161 is a HFPR 6004 IC806 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting width0.2360
Insert handRight Hand
Insert materialSolid Carbide
Insert size6004
Insert size code6004
Insert styleHFPR
Iso codeHFPR 6004 IC806
Manufacturers catalog number3318161
Manufacturer gradeIC806
Material gradeSubmicron
Maximum corner radius0.0160
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
StandardsISO 13399
