Iscar

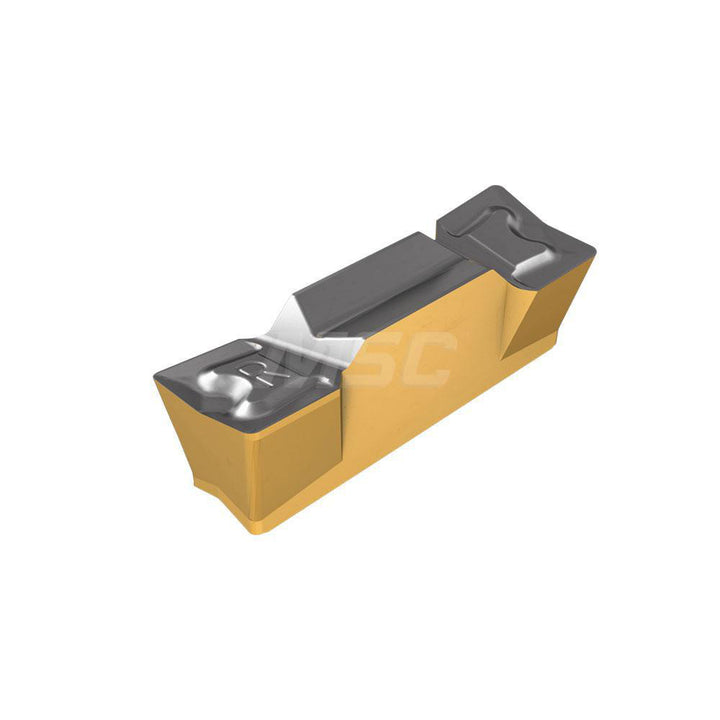

HFPL 4004 IC806 Carbide Insert, Grade IC806, AlTiN - Iscar 3318166
MFR# 3318166ISO/ANSI# HFPL 4004 IC806Series Heliface
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 3318166 is a HFPL 4004 IC806 carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloys, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting width0.157
Insert handLeft Hand
Insert materialCarbide
Insert size4004
Insert size code4004
Insert styleHFPL
Iso codeHFPL 4004 IC806
Manufacturers catalog number3318166
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0160
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
