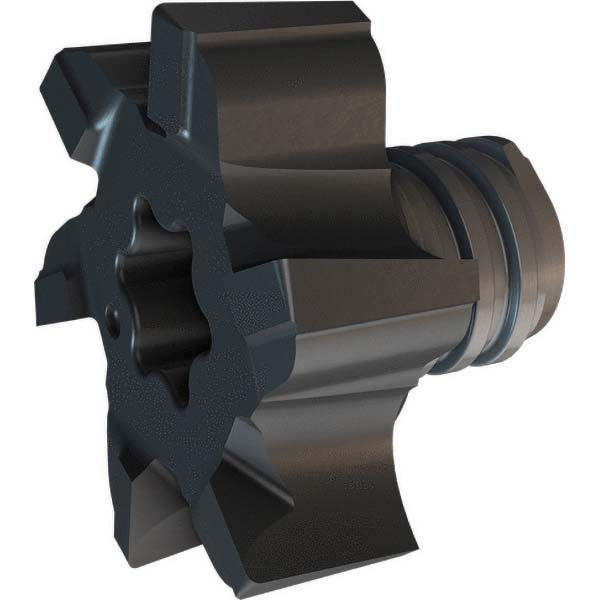

Carbide Insert, Grade IC908, TiAlN - Iscar 3318857

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 3318857

MFR# 3318857Series MM FM

$80.50List $103.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 3318857 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0079
Cutting diameter0.4728
Cutting width0.4728in
Functional length0.1734
Included angle degree90
Insert handRight Hand
Insert size120-36R0.2
Lead angle90
Length of cut0.1418in
Manufacturers catalog number3318857
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1418
Milling tip full descriptionMM FM120-36R0.2-06T05
Milling tip styleMM FM
Milling tip typeFace
Number of flutes6
Overall length0.1734in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
