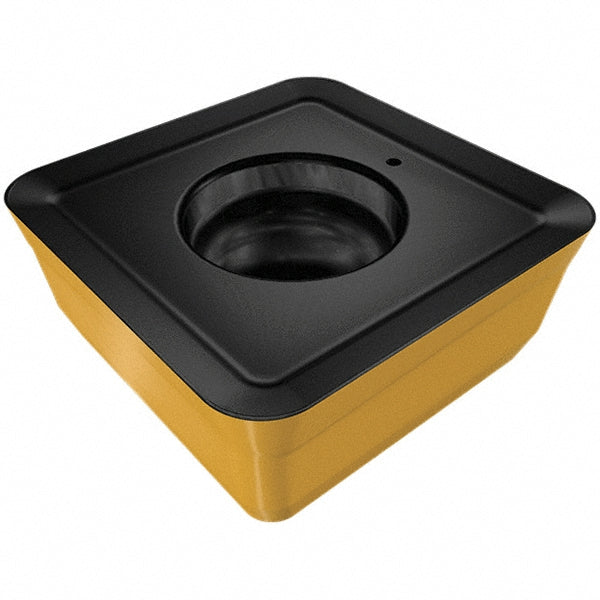

FFQ4 SOMT 090412HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323466

Iscar

FFQ4 SOMT 090412HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323466

MFR# 3323466ISO/ANSI# FFQ4 SOMT 090412HPCat# FFQ4 SOMT 090412HP IC808Series MILL4FEED

$16.53List $20.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 3323466 is a FFQ4 SOMT 090412HP solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeFFQ4 SOMT 090412HP IC808
Chip breakerHP
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFFQ4
Cutting edge effective length0.2874
Cutting edge styleContinuous
Included angle degree90
Inscribed circle0.3350
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleSOMT
Iso codeFFQ4 SOMT 090412HP
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog numberFFQ4 SOMT 090412HP IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1500
Thickness range0.1250 to 0.1500
Width0.3346
