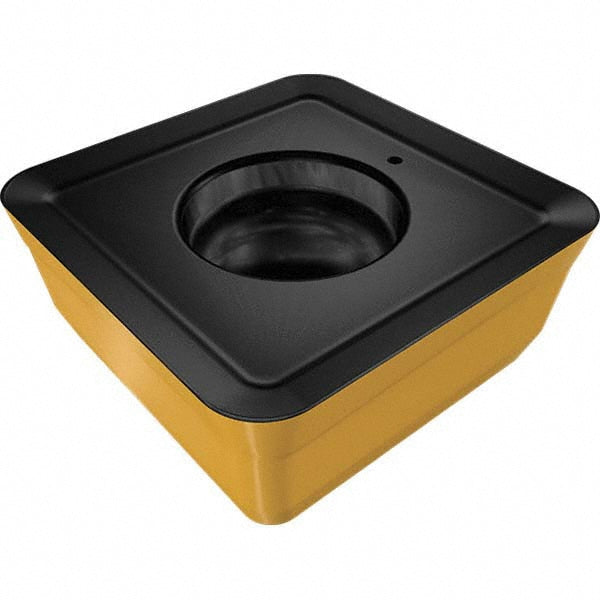

FFQ4 SOMT 090412T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323468

Iscar

FFQ4 SOMT 090412T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323468

MFR# 3323468ISO/ANSI# FFQ4 SOMT 090412TCat# FFQ4 SOMT 090412T IC808Series MILL4FEED

$16.24List $20.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 3323468 is a FFQ4 SOMT 090412T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeFFQ4 SOMT 090412T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFFQ4
Cutting edge effective length0.2874
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3350
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleSOMT
Iso codeFFQ4 SOMT 090412T
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog numberFFQ4 SOMT 090412T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1540
Thickness range0.1500 to 0.1750
Width0.3346
