Iscar

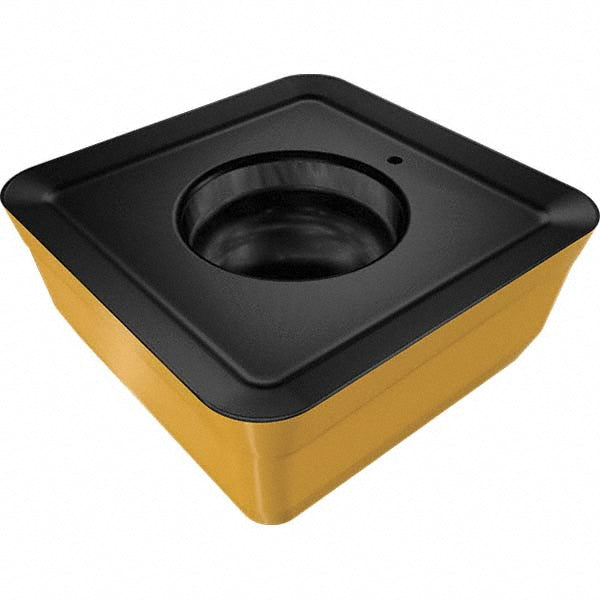

FFQ4 SOMT 0904RM-T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323471
MFR# 3323471ISO/ANSI# FFQ4 SOMT 0904RM-TCat# FFQ4 SOMT 0904RM-T IC808Series MILL4FEED
$18.92List $23.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3323471 is a FFQ4 SOMT 0904RM-T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeFFQ4 SOMT 0904RM-T IC808
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFFQ4
Cutting edge effective length0.2874
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3350
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code0904
Insert styleSOMT
Iso codeFFQ4 SOMT 0904RM-T
Length0.3386
Length range0.3200 to 0.4000
Manufacturers catalog numberFFQ4 SOMT 0904RM-T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1500
Thickness range0.1250 to 0.1500
Width0.3386
