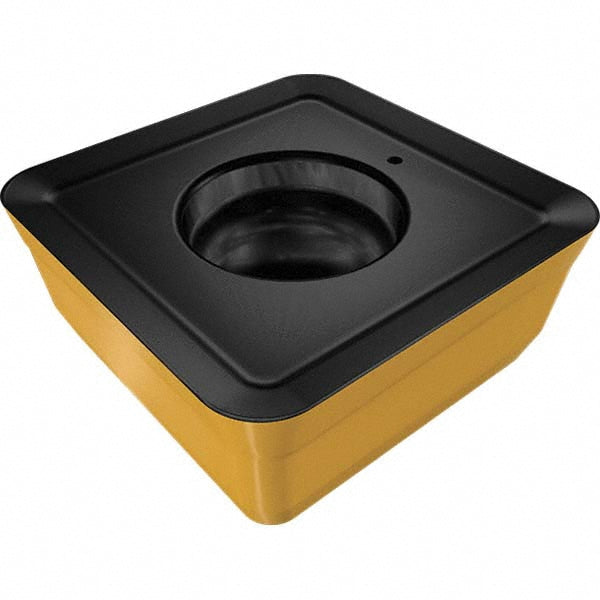

FFQ4 SOMT 170625HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3323581

Iscar

FFQ4 SOMT 170625HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3323581

MFR# 3323581ISO/ANSI# FFQ4 SOMT 170625HPCat# FFQ4 SOMT 170625HP IC882Series MILL4FEED

$36.62List $46.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3323581 is a FFQ4 SOMT 170625HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeFFQ4 SOMT 170625HP IC882
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0984
Cutter series compatibilityFFQ4
Cutting edge effective length0.5906
Cutting edge styleContinuous
Included angle degree90
Inscribed circle0.6890
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size17
Insert size code170625
Insert styleSOMT
Iso codeFFQ4 SOMT 170625HP
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberFFQ4 SOMT 170625HP IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.5906
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.6890
