Iscar

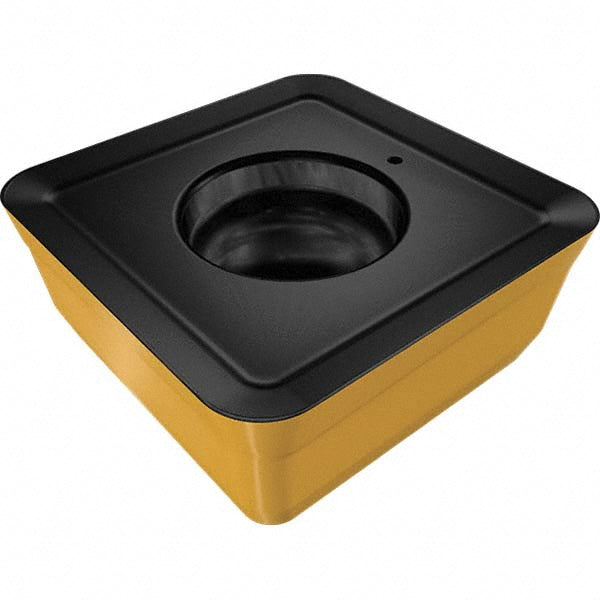

FFQ4 SOMT 1706RM-T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3323587
MFR# 3323587ISO/ANSI# FFQ4 SOMT 1706RM-TCat# FFQ4 SOMT 1706RM-T IC808Series MILL4FEED
$27.40List $35.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3323587 is a FFQ4 SOMT 1706RM-T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeFFQ4 SOMT 1706RM-T IC808
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.0984
Cutter series compatibilityFFQ4
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.6890
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size17
Insert size code1706
Insert styleSOMT
Iso codeFFQ4 SOMT 1706RM-T
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberFFQ4 SOMT 1706RM-T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.5906
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.6890
