Iscar

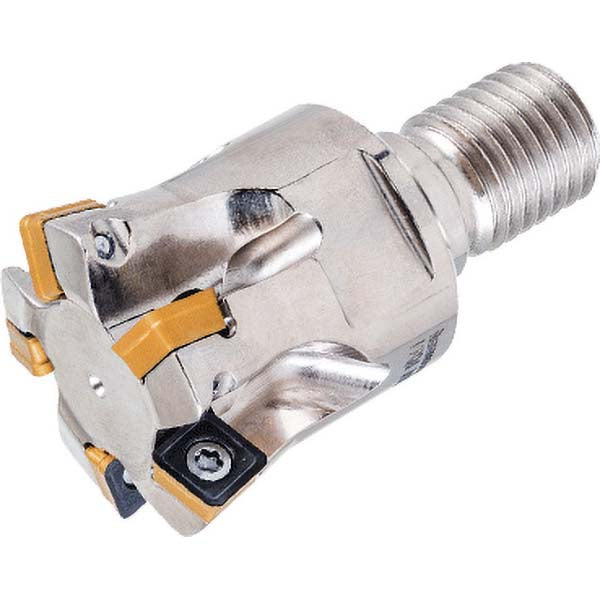

Indexable End Mills - Iscar 3323699
MFR# 3323699Series Mill 4 Feed
$611.07List $631.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
MaterialSteel
Description
The Iscar 3323699 indexable end mills. Series Mill 4 Feed.
Specifications
Compatible insert styleFFQ4SOMT090412T
Coolant throughYes
Cutting diameter (mm)23.70
End mill materialSteel
End mill typeHigh Feed
Functional length1.4000
Head length (mm)35.50
Insert holding methodScrew
Maximum cutting diameter in1-1/2
Maximum depth of cut (mm)1.20
Maximum ramping angle2.30
Minimum cutting diameter0.9330
Modular connection sizeM16
Number of cutter inserts5
Number of flutes5
Overall length (mm)61.00
Shank diameter (mm)29.00
Shank typeModular Connection
StandardsISO 13399
Toolholder styleFFQ4
Tool applicationMilling
Weldon flatNo
