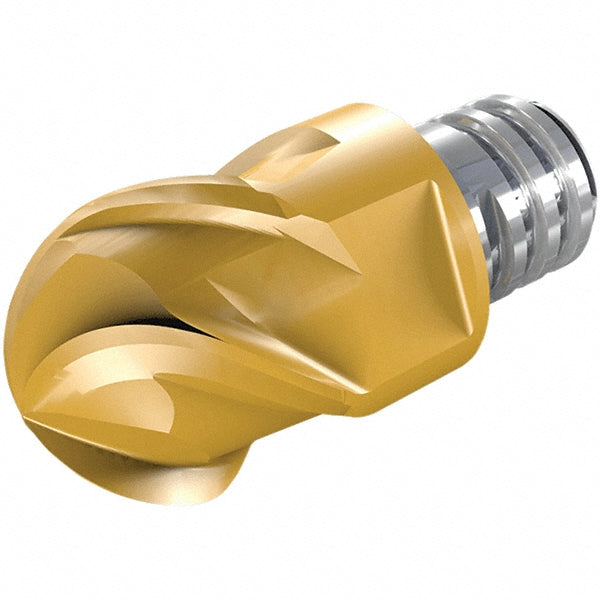

Carbide Insert, Grade IC903, TiAlN - Iscar 3326624

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 3326624

MFR# 3326624Series MM EBC

$147.34List $188.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC903
CoatingTiAlN

Description

The Iscar 3326624 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting width0.5000in
Functional length0.6500
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.500B37
Lead angle90
Length of cut0.3700in
Manufacturers catalog number3326624
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.3700
Milling tip full descriptionMM EBC.500B37-4T08CF
Milling tip styleMM EBC
Milling tip typeBall Nose
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
