Carbide Insert, Grade IC908, TiAlN - Iscar 3328319

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 3328319

MFR# 3328319Series SD-SP

$160.38List $205.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8
GradeIC908
CoatingTiAlN

Description

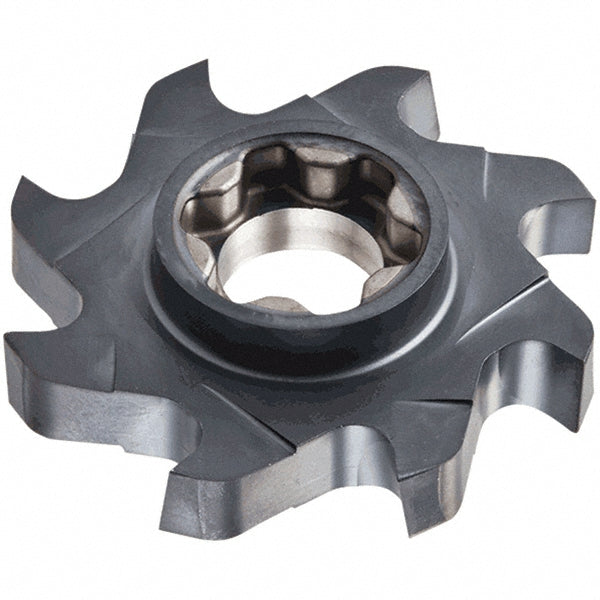

The Iscar 3328319 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0158
Cutting diameter1.2490
Cutting width0.2167
Functional length0.3152
Included angle degree90
Insert handRight Hand
Insert sizeD32-5.5-R0.4
Lead angle90
Length of cut0.3152
Manufacturers catalog number3328319
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3152
Milling tip full descriptionSD D32-5.5-R0.4-SP15
Milling tip styleSD-SP
Milling tip typeT-Slot
Number of flutes8
Overall length0.3152
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
