Iscar

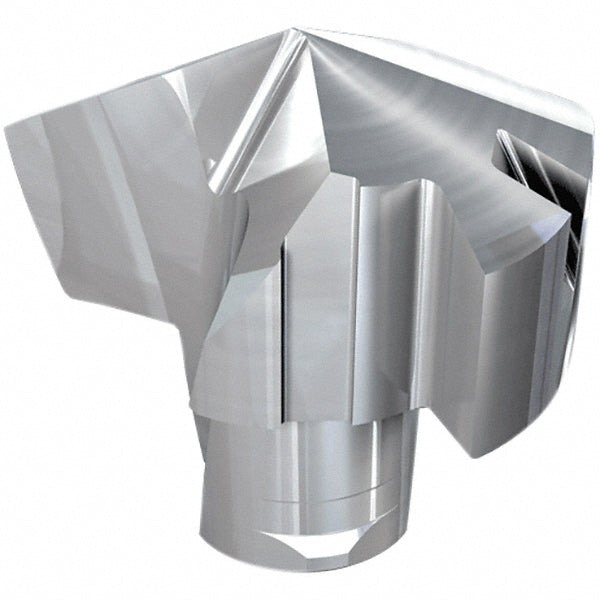

Carbide Insert, Grade IC08 - Iscar 3328366
MFR# 3328366Series ICN
$92.26List $116.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC08
Description
The Iscar 3328366 is a carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
ApplicationsHole Making; Chamfering; Drilling
Coating processBright/Uncoated
Coolant throughNo
Cutting diameter in7/16
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1935
Height0.26
Included angle degree140
Insert geometryN
Insert holding methodClamp
Insert seat size11
Iso numberICN 111
Manufacturer gradeIC08
Material gradeSubmicron
Number of flutes2
Overall length projection0.2601
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Spiral typeRegular Spiral
StandardsISO 13399
StyleICN
Tip materialSolid Carbide
Web thinningWeb Thinned
