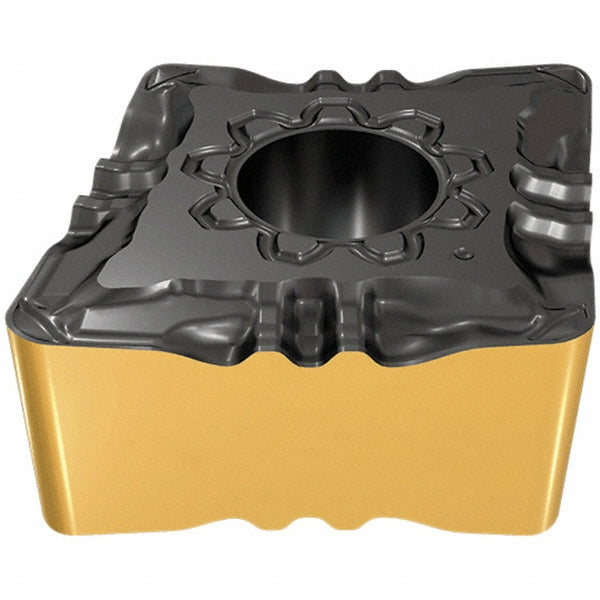

CNMG 431-F3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328720

Iscar

CNMG 431-F3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328720

MFR# 3328720ISO/ANSI# CNMG120404Series Isoturn

$16.37List $21.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 3328720 is a CNMG 431-F3P carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerF3P
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 431-F3P
Iso insert codeCNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number3328720
Manufacturer gradeIC830
Maximum depth of cut0.1380
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
