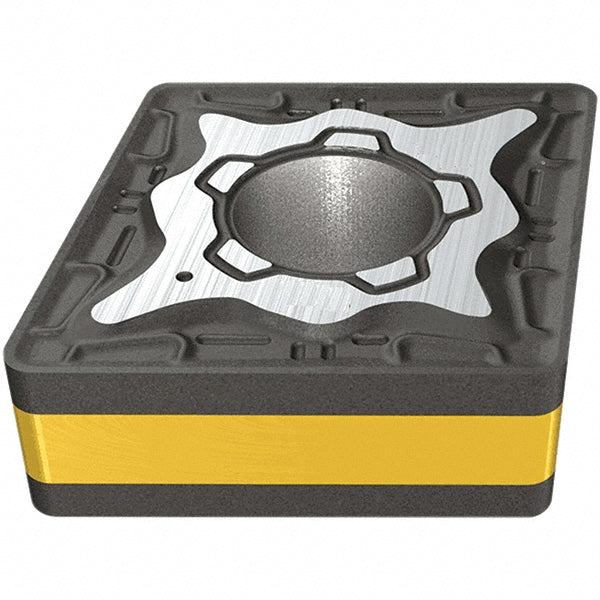

CNMG 433-M3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328727

Iscar

CNMG 433-M3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328727

MFR# 3328727ISO/ANSI# CNMG120412Series Isoturn

$16.37List $21.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 3328727 is a CNMG 433-M3P carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerM3P
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 433-M3P
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number3328727
Manufacturer gradeIC830
Maximum depth of cut0.2170
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
