Iscar

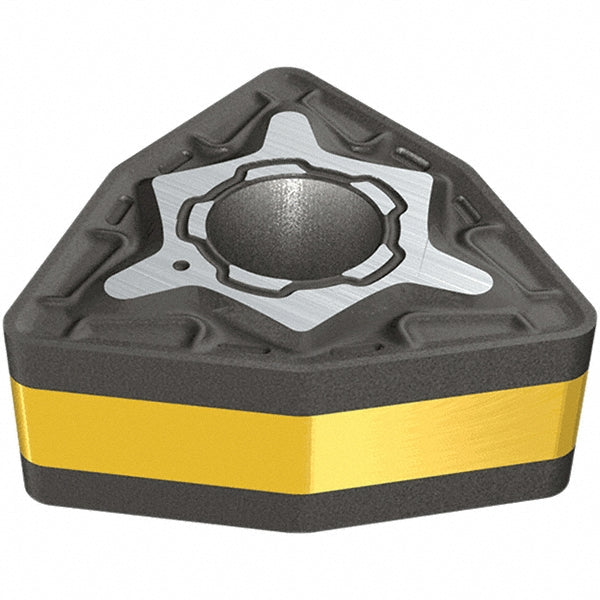

WNMG 432-M3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328812
MFR# 3328812ISO/ANSI# WNMG 432-M3PSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3328812 is a WNMG 432-M3P carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 432-M3P
Length range0.3000 - 0.4000
Manufacturers catalog number3328812
Manufacturer gradeIC830
Maximum depth of cut0.1570
RakePositive
StandardsISO 13399
Tolerance codeM
