Iscar

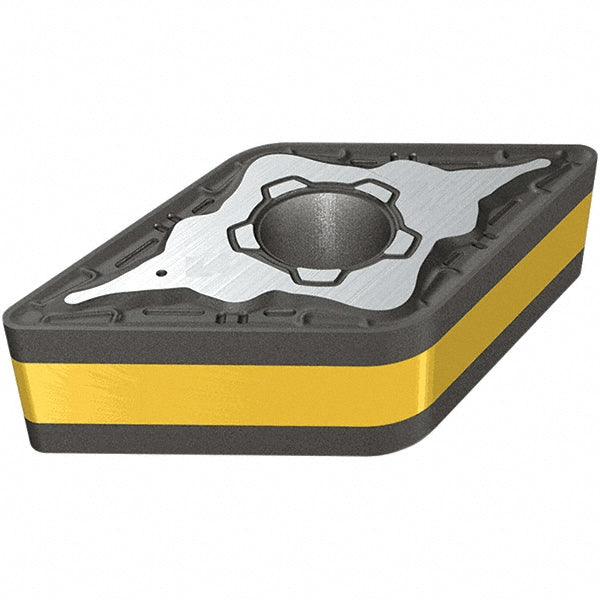

DNMG 432-M3P Carbide Insert, Grade IC830, TiAlN - Iscar 3328956
MFR# 3328956ISO/ANSI# DNMG 432-M3PSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3328956 is a DNMG 432-M3P carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert length0.6100
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-M3P
Length range0.6000 - 0.6500
Manufacturers catalog number3328956
Manufacturer gradeIC830
Maximum depth of cut0.2360
Multi use applicationTurning
RakePositive
StandardsISO 13399
Tolerance codeM
