Iscar

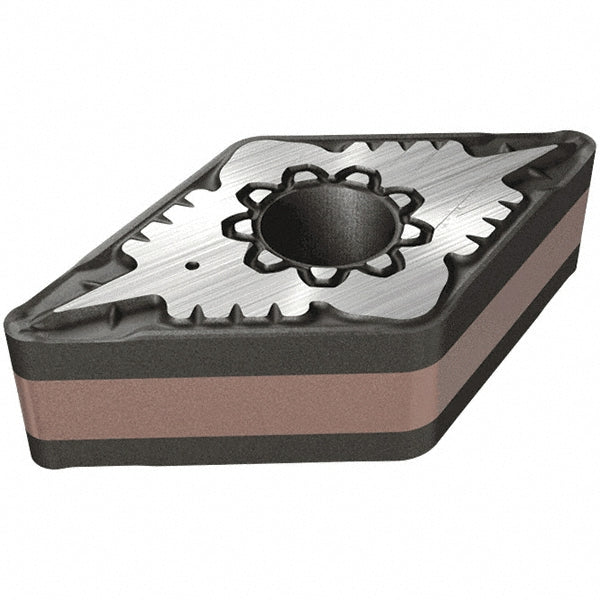

DNMG 431-F3M Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3328966
MFR# 3328966ISO/ANSI# DNMG 431-F3MSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3328966 is a DNMG 431-F3M solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle55.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 431-F3M
Length range0.6000 - 0.6500
Manufacturers catalog number3328966
Manufacturer gradeIC830
Maximum depth of cut0.0590
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
