Iscar

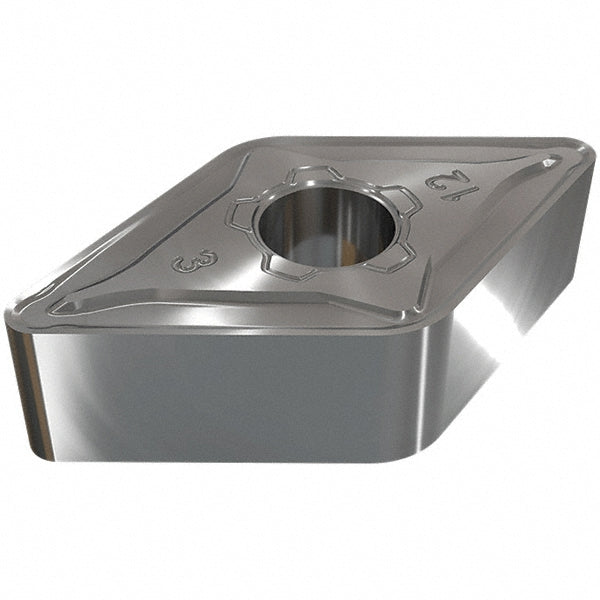

DNMG 432-M3M Carbide Insert, Grade IC830, TiAlN - Iscar 3328972
MFR# 3328972ISO/ANSI# DNMG150408Series Isoturn
$19.45List $24.50
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3328972 is a DNMG 432-M3M carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-M3M
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog number3328972
Manufacturer gradeIC830
Maximum depth of cut0.1970
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
