Iscar

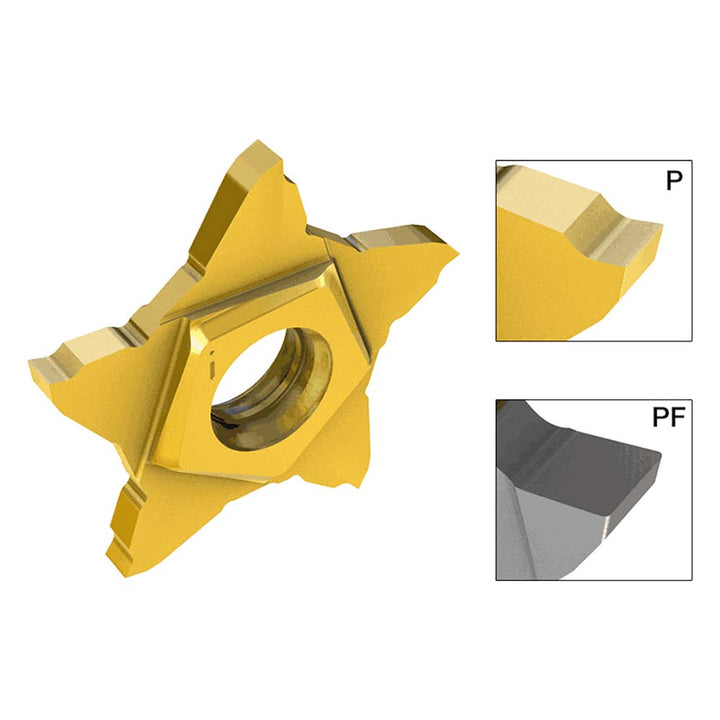

PENTA 24N075PF005 IC30N Solid Carbide Insert, Grade IC30N - Iscar 3334953
MFR# 3334953ISO/ANSI# PENTA 24N075PF005 IC30NSeries PentaCut
$53.00List $66.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC30N
MaterialSolid Carbide
Description
The Iscar 3334953 is a PENTA 24N075PF005 IC30N solid carbide indexable insert, grade IC30N. Suited for hard material, stainless steel, steel.
Specifications
Chip breakerPF
Corner radius0.0020
Cutting width0.0300
Insert handNeutral
Insert materialSolid Carbide
Insert size24N075
Insert size code24N075PF005
Insert stylePENTA
Iso codePENTA 24N075PF005 IC30N
Manufacturers catalog number3334953
Manufacturer gradeIC30N
Maximum corner radius0.0020
Maximum depth of cut0.0980
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Primary workpiece materialHard Material; Stainless Steel; Steel
RakePositive
Rake angle7.00
StandardsISO 13399
