Iscar

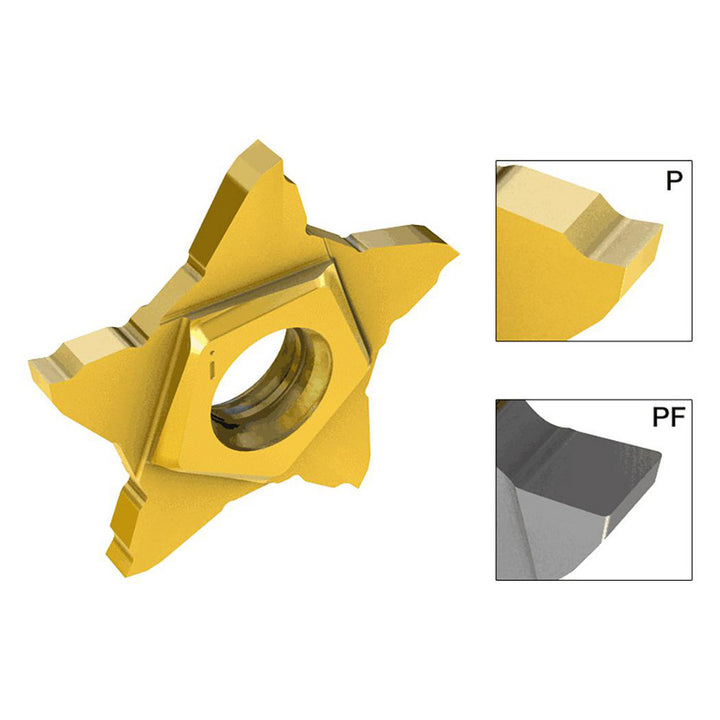

PENTA 24N125PF020 IC30N Carbide Insert, Grade IC30N - Iscar 3334963
MFR# 3334963ISO/ANSI# PENTA 24N125PF020 IC30NSeries PentaCut
$47.48List $60.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC30N
MaterialCarbide
Description
The Iscar 3334963 is a PENTA 24N125PF020 IC30N carbide indexable insert, grade IC30N. Suited for hard material, stainless steel, steel.
Specifications
Chip breakerPF
Corner radius0.0080
Cutting width0.0490
Insert handNeutral
Insert materialCarbide
Insert size24N125
Insert size code24N125PF020
Insert stylePENTA
Iso codePENTA 24N125PF020 IC30N
Manufacturers catalog number3334963
Manufacturer gradeIC30N
Maximum depth of cut0.1970
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Primary workpiece materialHard Material; Stainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
