Iscar

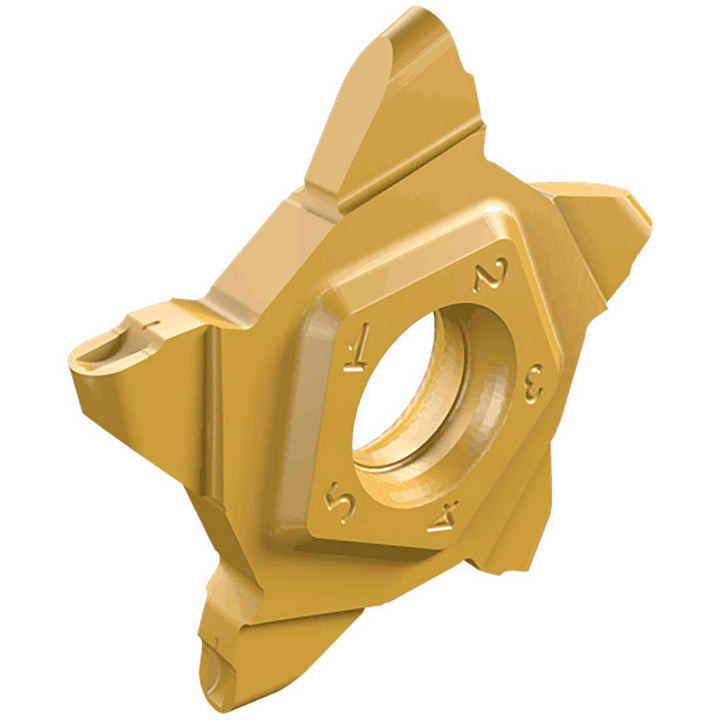

PENTA 24N157C079 IC908 Carbide Insert, Grade IC908, TiAlN - Iscar 3335538
MFR# 3335538ISO/ANSI# PENTA 24N157C079 IC908Series PentaCut
$65.96List $84.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 3335538 is a PENTA 24N157C079 IC908 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Cutting width0.062
Insert handNeutral
Insert materialCarbide
Insert size24N157
Insert size code24N157C079
Insert stylePENTA
Iso codePENTA 24N157C079 IC908
Manufacturers catalog number3335538
Manufacturer gradeIC908
Material gradeFine Grain
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
StandardsISO 13399
