Iscar

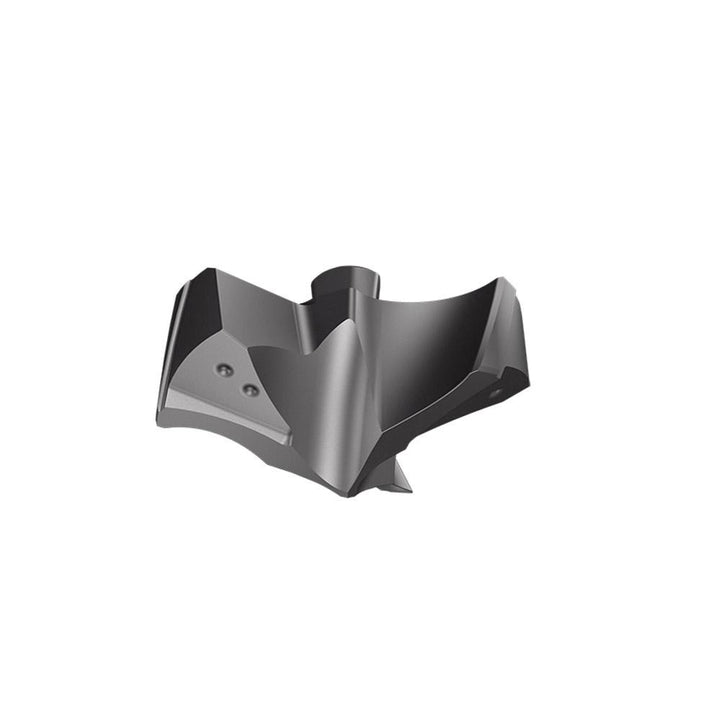

Carbide Insert, Grade IC908, TiAlN - Iscar 3335740
MFR# 3335740Series H3P
$123.37List $158.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN
Description
The Iscar 3335740 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle135
Flute length (mm)5.00
Flute typeHelical
Functional length0.1840
Height0.298
Included angle degree135
Insert geometryP
Insert holding methodClamp
Insert seat size13
Iso numberH3P 135-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes3
Overall length projection0.2987
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleH3P
Tip materialSolid Carbide
Web thinningWeb Thinned
