Iscar
Carbide Insert, Grade IC908, TiAlN - Iscar 3335771
MFR# 3335771Series H3P
$195.91List $250.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN
Description

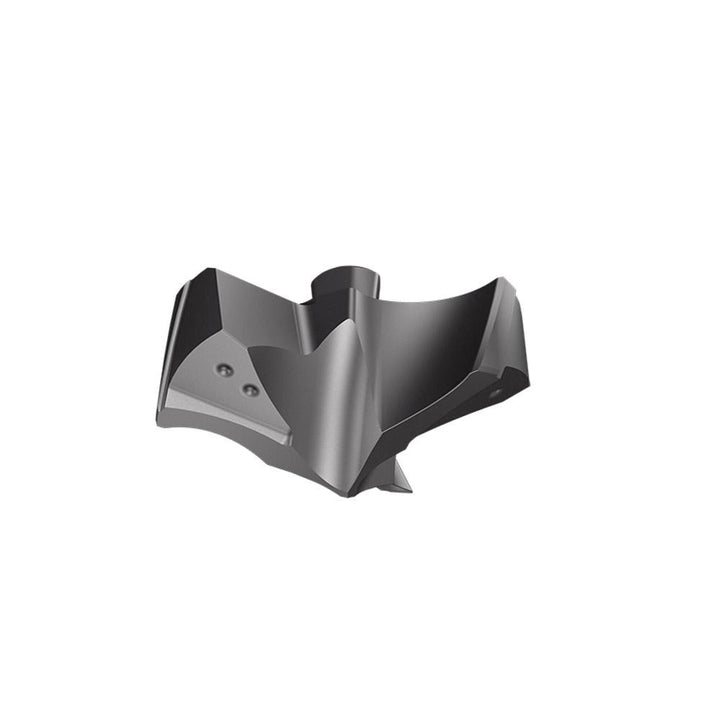

The Iscar 3335771 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in7/8
Drill point angle135
Flute length (mm)8.00
Flute typeHelical
Functional length0.3128
Height0.497
Included angle degree135
Insert geometryP
Insert holding methodClamp
Insert seat size22
Iso numberH3P 222-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes3
Overall length projection0.4976
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleH3P
Tip materialSolid Carbide
Web thinningWeb Thinned
