Iscar

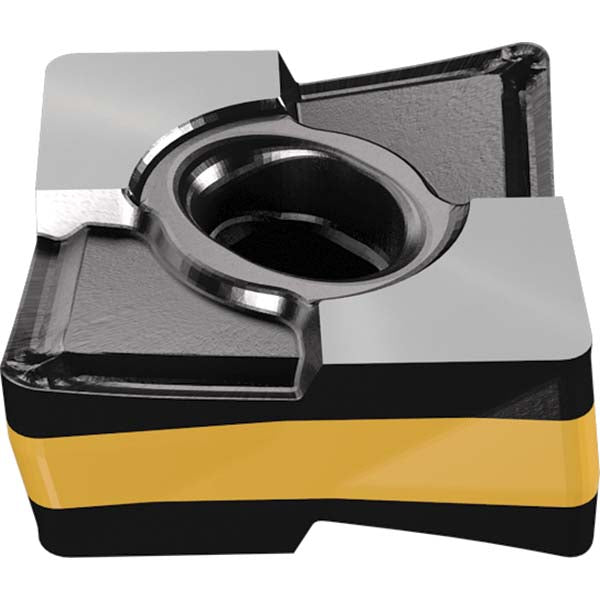

ISO 13399 Carbide Insert, Grade IC8150, TiCN - Iscar 3336028
MFR# 3336028ISO/ANSI# ISO 13399Series Logiq4turn
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8150
MaterialCarbide
CoatingTiCN
Description
The Iscar 3336028 is a ISO 13399 carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerM3P
Clearance codeX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Included angle80
Insert length0.5410
Insert materialCarbide
Insert shapeDiamond
Insert size code508
Insert styleCXMG
Insert thickness0.2280
Iso codeISO 13399
Manufacturer gradeIC8150
Maximum depth of cut0.1970
Primary workpiece materialCast Iron; Steel
RakePositive
StandardsISO 13399
Tolerance codeM
