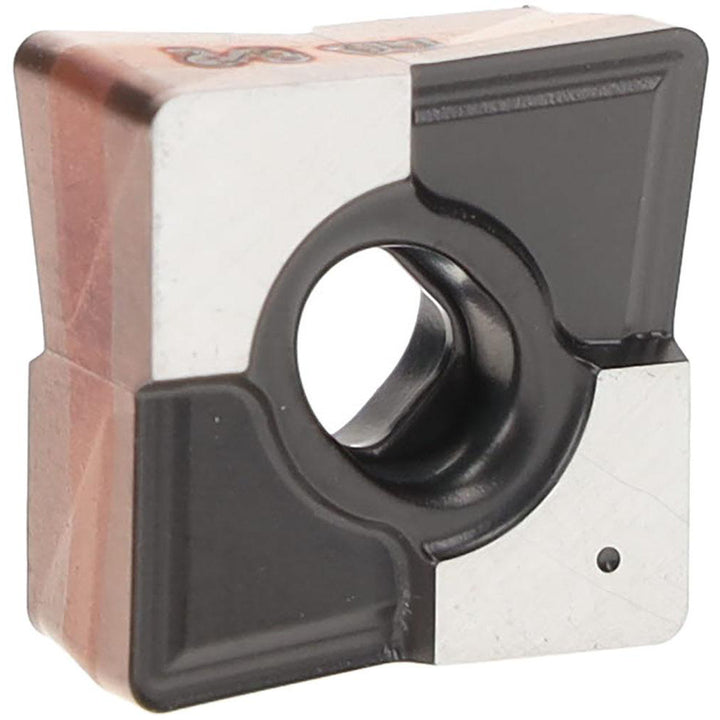

ISO 13399 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 3336032
MFR# 3336032ISO/ANSI# ISO 13399Series Logiq4turn
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 3336032 is a ISO 13399 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Included angle80.0
Inscribed circle in1/2
Insert length0.5410
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code508
Insert styleCXMG
Insert thickness0.2280
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel
RakePositive
StandardsISO 13399
Tolerance codeM
Width0.2280
